1. Closed End Self Sealing Rivets >>

button-print-gry20

Hanson’s Closed-End rivets prevent the passage of vapor or liquid through the set rivet. They also provide 100% mandrel retention. This means the head of the mandrel that breaks off stays in the set rivet. This assures that it won’t fall into your assembly and rattle around or short out electronics!

CLOSED-END SELF SEALING RIVETS

Click part numbers for pricing or to buy

RIVET MATERIAL
MANDREL MATERIAL		 HEAD
STYLE		 PART
NUMBER		 POP® BODY
DIAMETER		 WORK HOLE
& DRILL SIZE		 GRIP
RANGE		 BODY
LENGTH
(MAX.)		 HEAD
DIAMETER
(NOM.)		 HEAD
HEIGHT
(MAX.)		 TYPICAL ULTIMATE
STRENGTHS IN LBS.
(SEE NOTE)

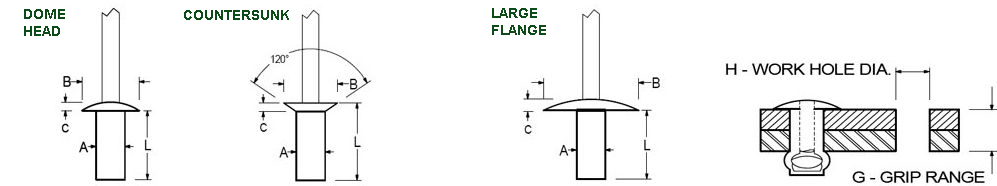

“A“ “H“ “G“ “L“ “B“ “C“ SHEAR TENSILE
w22-rivet

DOME
HEAD

 PASD401H
PASD402H
PASD403H
PASD404H
PASD405H
PASD406H
PASD408H		 AD41H
AD42H
AD43H
AD44H
AD45H
AD46H
AD48H		 .125
1/8		 .129/.133
#30		 .032-.062
.063-.125
.126-.187
.188-.250
.251-.312
.313-.375
.376-.500		 .252
.316
.377
.440
.502
.565
.690		 .236
.236
.236
.236
.260
.260
.260		 .051 305 385
PASD502H
PASD503H
PASD504H
PASD505H		 AD52H
AD53H
AD54H
AD55H		 .156
5/32		 .160/.164
#20		 .063-.125
.126-.187
.188-.250
.251-.312		 .330
.392
.455
.517		 .312 .066 430 605
PASD602H
PASD603H
PASD604H
PASD605H
PASD606H
PASD608H
PASD610H		 AD62H
AD63H
AD64H
AD65H
AD66H
AD68H
AD610H		 .187
3/16		 .192/.196
#11		 .063-.125
.126-.187
.126-.250
.251-.312
.313-.375
.376-.500
.501-.625		 .345
.407
.470
.532
.595
.720
.866		 .375 .081 575 840
PASD804H
PASD806H		 AD84H
AD86H		 .250
1/4		 .257/.261
F		 .126-.250
.251-.375		 .505
.630		 .500 .099 900 1100

LARGE
FLANGE

 PASL401H
PASL402H
PASL403H		 AD402SBMLF8
AD404SBMLF8
AD406SBMLF8		 .125
1/8		 .129/.133
#30		 .000-.063
.063-.125
.125-.188		 .262
.324
.387		 .315 .047 305 385
PASL502H
PASL503H
PASL504H
PASL505H		 AD504SBMLF10
AD506SBMLF10
AD508SBMLF10
AD510SBMLF10		 .156
5/32		 .160/.164
#20		 .000-.125
.125-.188
.188-.250
.250-.309		 .332
.394
.461
.523		 .394 .067 430 605
PASL602H
PASL603H
PASL604H
PASL605H
PASL606H		 AD604SBMLF11
AD606SBMLF11
AD608SBMLF11
AD610SBMLF11
AD612SBMLF11		 .187
3/16		 .192/.196
#11		 .000-.125
.125-.188
.188-.250
.250-.309
.309-.371		 .348
.410
.473
.527
.590		 .433 .076 575 840

120°
COUNTERSUNK

 PASK400H
PASK401H
PASK402H
PASK403H
PASK404H
PASK405H
PASK406H		 AK40H
AK41H
AK42H
AK43H
AK44H
AK45H
AK46H		 .125
1/8		 .129/.133
#30		 .040 MAX
.032-.062
.063-.125
.126-.187
.188-.250
.251-.312
.313-.375		 .210
.297
.361
.422
.486
.548
.611		 .220
.233
.233
.233
.233
.233
.233		 .040
.051
.051
.051
.051
.051
.051		 305 385
PASK501H
PASK502H
PASK503H
PASK504H
PASK505H
PASK506H		 AK51H
AK52H
AK53H
AK54H
AK55H
AK56H		 .156
5/32		 .160/.164
#20		 .032-.062
.063-.125
.126-.187
.188-.250
.251-.312
.313-.375		 .327
.390
.452
.515
.578
.641		 .312 .066 430 605
OTHER COLORS
AND FINISHES AVAILABLE		 PASK602H
PASK604H
PASK606H		 AK62H
AK64H
AK66H		 .187
3/16		 .192/.196
#11		 .062-.125
.126-.250
.251-.375		 .415
.540
.665		 .375 .075 500
575
575		 690
840
840

CLOSED-END SELF SEALING RIVETS

Click part numbers for pricing or to buy

RIVET MATERIAL
MANDREL MATERIAL		 HEAD
STYLE		 PART
NUMBER		 POP® BODY
DIAMETER		 WORK HOLE
& DRILL SIZE		 GRIP
RANGE		 BODY
LENGTH
(MAX.)		 HEAD
DIAMETER
(NOM.)		 HEAD
HEIGHT
(MAX.)		 TYPICAL ULTIMATE
STRENGTHS IN LBS.
(SEE NOTE)
“A“ “H“ “G“ “L“ “B“ “C“ SHEAR TENSILE
w23-rivet01
ALUMINUM RIVET
ALUMINUM MANDREL		 DOME
HEAD		 PAAD401AH
PAAD402AH
PAAD403AH
PAAD404AH		 AD41AH
AD42AH
AD43AH
AD44AH		 .125
1/8		 .129/.133
#30		 .032-.062
.063-.125
.126-.187
.188-.250		 .252
.316
.377
.440		 .236 .051 105 150
PAAD504AH
PAAD505AH		 AD54AH
AD55AH		 .156
5/32		 .160/.164
#20		 .063-.250
.251-.312		 .455
.517		 .312 .066 150 240
PAAD602AH
PAAD604AH
PAAD606AH
PAAD608AH		 AD62AH
AD64AH
AD66AH
AD68AH		 .187
3/16		 .192/.196
#11		 .063-.125
.126-.250
.251-.375
.376-.500		 .345
.470
.595
.720		 .375 .081 220 310
ALUMINUM RIVET
STAINLESS MANDREL		 DOME
HEAD		 PATD604H
PATD606H
PATD608H		 AD64SSH
AD66SSH
AD68SSH		 .187
3/16		 .192/.196
#11		 .126-.250
.251-.375
.376-.500		 .470
.595
.705		 .375 .081 575 840
w23-rivet DOME
HEAD		 PTTD401H
PTTD402H
PTTD403H
PTTD404H
PTTD405H		 SSD41SSH
SSD42SSH
SSD43SSH
SSD44SSH
SSD45SSH		 .125
1/8		 .129/.133
#30		 .000-.063
.063-.125
.032-.187
.188-.250
.250-.309		 .258
.313
.373
.441
.504		 .260 .029 495 495
PTTD502H
PTTD503H
PTTD504H
PTTD505H
PTTD506H		 SSD52SSH
SSD53SSH
SSD54SSH
SSD55SSH
SSD56SSH		 .156
5/32		 .160/.164
#20		 .000-.125
.125-.187
.188-.250
.250-.309
.251-.375		 .338
.392
.461
.523
.650		 .323 .037 787 899
PTTD602H
PTTD603H
PTTD604H
PTTD606H
PTTD608H		 SSD62SSH
SSD63SSH
SSD64SSH
SSD66SSH
SSD68SSH		 .187
3/16		 .192/.196
#11		 .000-.125
.125-.188
.188-.250
.250-.371
.371-.496		 .359
.422
.488
.605
.723		 .388 .039 967 989
PTTD804H
PTTD806H
PTTD808H		 SSD84SSH
SSD85SSH
SSD88SSH		 .250
1/4		 .257/.261
F		 .000-.250
.250-.371
.371-.496		 .555
.613
.801		 .500 .099 1528 1955
w23-rivet02
STEEL RIVET
STEEL MANDREL		 DOME
HEAD		 PSSD403H SD46H .125
1/8		 .129/.133
#30		 .062-.187 .382 .250 .039 259 270
PSSD503H SD56H .156
5/32		 .160/.164
#20		 .062-.187 .401 .312 .047 389 418
PSSD602H
PSSD604H		 SD64H
SD68H		 .187
3/16		 .192/.196
#11		 .000-.125
.126-.250		 .362
.488		 .375 .051 545 638
 w23-rivet03
COPPER RIVET
STEEL MANDREL		 DOME
HEAD		 PCSD403H
PCSD404H
PCSD405H		 CD43H
CD44H
CD45H		 .125
1/8		 .129/.133
#30		 .063-.187
.188-.250
.251-.312		 .362
.425
.487		 .236 .051 270 337
